GitLab Kubernetes integration - build, test, deploy at scale

• object-storage
• proxy
• GitLab
• Kubernetes

GitLab provides a built-in Kubernetes integration that allows you to build, test, deploy, and run your app at scale.

In this tutorial, you will learn how to use the gitlab Kubernetes integration using a Scaleway Instance. The Instance will be deployed using the Scaleway gitlab InstantApp.

Before you start

To complete the actions presented below, you must have:

• A Scaleway account logged into the console
• Owner status or IAM permissions allowing you to perform actions in the intended Organization
• An Instance running the gitlab InstantApp
• Created a Kapsule cluster.
• Downloaded the corresponding kubeconfig file and ensured kubectl is working
• Installed Helm client

Configuring GitLab runner using Helm charts

Installing helm

In this tutorial, we use helm to deploy a gitlab runner on a Kapsule cluster.

Ensure you’re using the latest version of Helm, which is Helm 3.16.2.

Installation Steps:

1. Download Helm

curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3
chmod 700 get_helm.sh
./get_helm.sh

2. Verify the installation:

helm version

Ensure the output shows version 3.16.2.

The helm charts are provided through repositories. By default helm 3 does not have any repository configured. We will add the gitlab repository, as it provides the necessary chart to install the runner.

helm repo add gitlab https://charts.gitlab.io
"gitlab" has been added to your repositories
helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "gitlab" chart repository
Update Complete. ⎈ Happy Helming!⎈

Installing GitLab runners using Helm

A helm chart is always shipped with a value.yaml file. It can be edited to customize the deployment of the application.

In this part of the tutorial we customize the value.yaml to fit our needs and deploy the runner on kapsule.

1. Fetch the latest values.yaml file:

   wget https://gitlab.com/gitlab-org/charts/gitlab-runner/-/raw/main/values.yaml

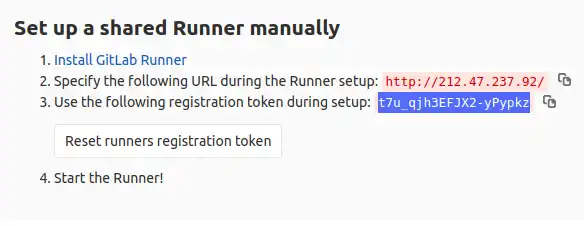

   Each gitlab runner needs a registration token to register on the gitlab server. Retrieve the registration token from the GitLab web interface (“Admin Area” > “Runners”):




2. Open the file in a text editor and update the following fields in values.yaml:

   gitlabUrl: http://<your-gitlab-instance>/
   runnerRegistrationToken: "<your-registration-token>"
   rbac:
     create: true
     serviceAccountName: default


   Ensure you replace <your-gitlab-instance> and <your-registration-token> with your actual GitLab instance URL and registration token.

   Tip

   By default, the gitlabUrl and the registration token lines are written as a comment in the values.yamlfile. Make sure you have deleted the # before saving.

3. To install the gitlab runner, create it on your Kapsule cluster. We will use a dedicated namespace.

   kubectl create ns gitlab-runner


   The following output displays namespace/gitlab-runner created.

   The default service account should use a new Kubernetes role, and rolebinding.

4. Use the following example to create a role and role binding and associate it to the default service account in the gitlab-runner namespace:

   cat <<EOF | kubectl create -f -
   apiVersion: rbac.authorization.k8s.io/v1
   kind: Role
   metadata:
     name: gitlab-runner
     namespace: gitlab-runner
   rules:
     - apiGroups: [""]
       resources: ["pods"]
       verbs: ["list", "get", "watch", "create", "delete"]
     - apiGroups: [""]
       resources: ["pods/exec"]
       verbs: ["create"]
     - apiGroups: [""]
       resources: ["pods/log"]
       verbs: ["get"]
   EOF
   kubectl create rolebinding --namespace=gitlab-runner gitlab-runner-binding --role=gitlab-runner --serviceaccount=gitlab-runner:default


5. Use the helm command to install the runner (note that you specify in this command line the values.yaml file):

   helm install --namespace gitlab-runner gitlab-runner -f ./values.yaml gitlab/gitlab-runner --version 0.68.1
   NAME: gitlab-runner
   LAST DEPLOYED: Wed May  6 15:48:20 2020
   NAMESPACE: gitlab-runner
   STATUS: deployed
   REVISION: 1
   TEST SUITE: None
   NOTES:
   Your GitLab Runner should now be registered against the GitLab instance reachable at: "http://212.47.xxx.yyy/"

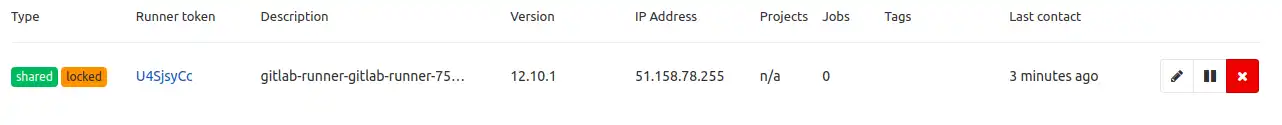

   The command above installs the GitLab Runner Helm chart version 0.68.1 in the gitlab-runner namespace. You can check the runner is working in the gitlab console (“admin area” > runners):



Running a pipeline in the runner using a test app

To demonstrate that the runner is working, we create a repository with a “hello world” piece of code written in Python.

1. Create the files using a text editor of your choice (e.g. nano or vim). In this tutorial, we use nano.

   nano helloworld.py


2. Create the content of the file as follows, save and exit:

   print("Hello, World!")


3. Create an associated gitlab-ci file to check it is running in the runner we just deployed:

   nano .gitlab-ci.yaml


4. Create the content of the file as follows, save and exit:

   image: ubuntu
   hello-test:
     script:
       - apt-get update && apt-get install python3
       - python3 helloworld.py

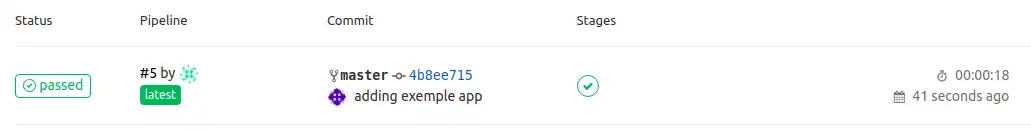

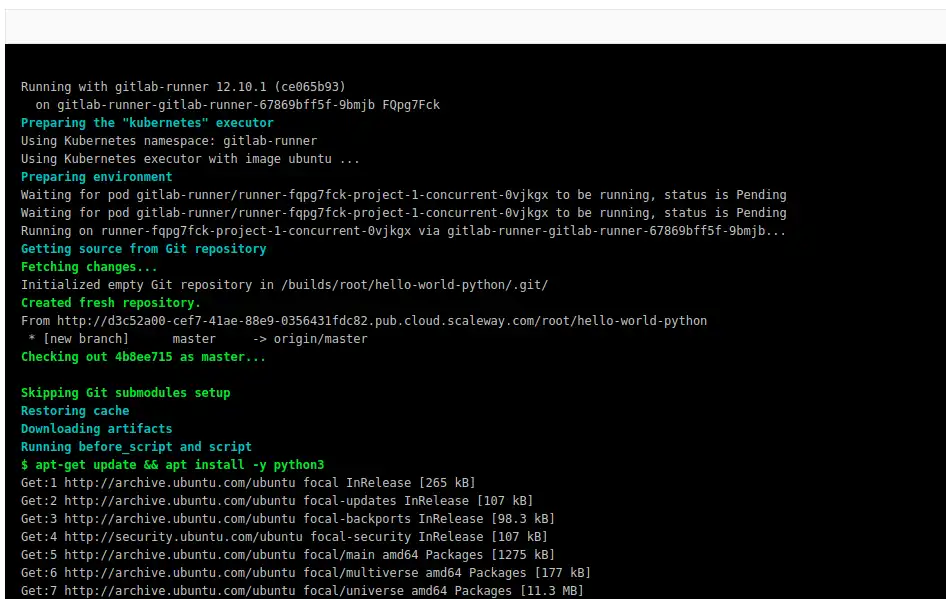

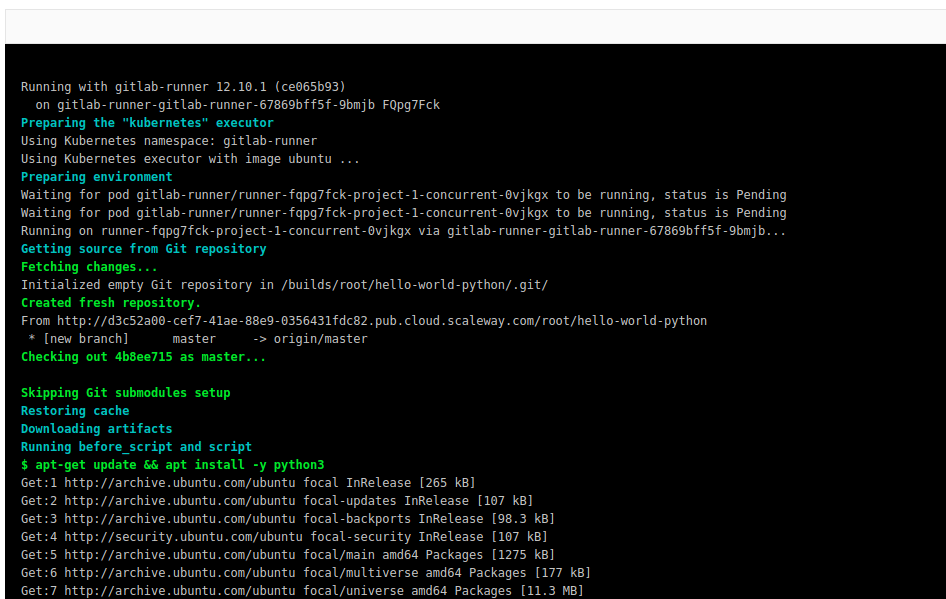

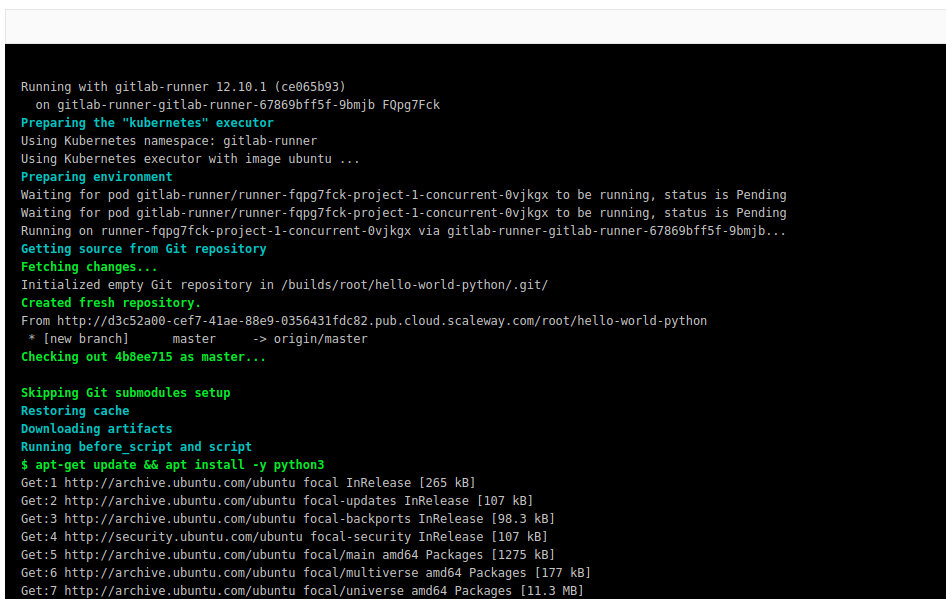

5. Push the repository and an Ubuntu container is launched. At first apt is updated, and python3 is installed, and then the “hello, world” script is launched in the terminal.



If you want to learn more about running a gitlab runner on Kubernetes you can also check the gitlab-ci official documentation.
