Using Veeam Backup & Replication with Object Storage

• vSphere
• Object-Storage
• Veeam-Backup
• Veeam

Veeam Overview

Veeam Backup & Replication is a proprietary backup application, developed by Veeam for virtual environments built on VMware vSphere and Microsoft Hyper-V hypervisors.

The solution provides backup, restore, and replication functionality for virtual machines, physical servers, and workstations as well as cloud-based workloads.

A native Object Storage interface for Veeam Backup & Replication is part of the Release 9.5 update 4, available in General Availability since January 22nd, 2019. It allows to push backups to an Amazon S3-compatible service to maximize backup capacity.

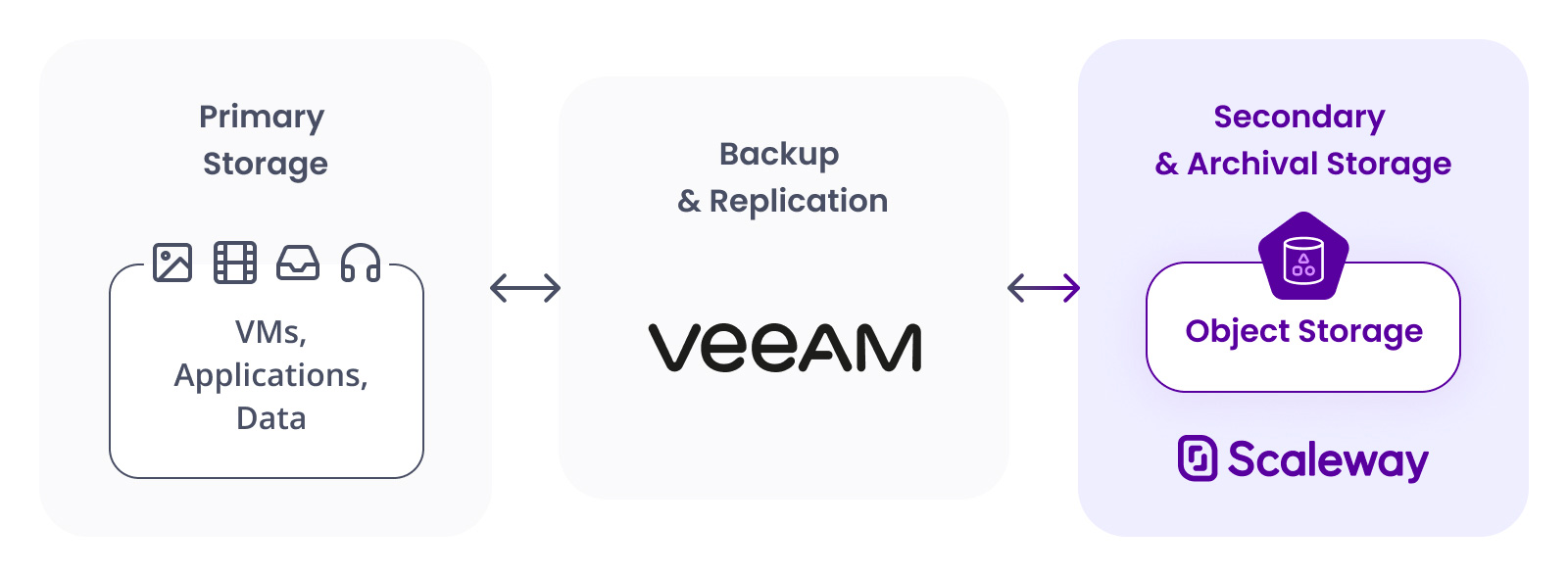

The following schema represents the functionality of Veeam Backup and Restore which acts as an intermediate agent to manage primary data storage and secondary and archival storage:

Before you start

To complete the actions presented below, you must have:

• A Scaleway account logged into the console
• Owner status or IAM permissions allowing you to perform actions in the intended Organization
• A machine running VMware vSphere
• An intermediate Instance running Veeam Backup & Replication
• An Object Storage bucket

Tip

By default, Veeam manages data in small objects of 1 MB/object. For optimal performance and storage of your backups, the configuration of Local Target (Large Blocks) in the storage options of Veeam is recommended. This setting allows you to store your backups in objects of 4MB/object:

We are currently working on a new backend (available in private beta), which will remove this limitation.

Configuring Veeam backup & replication

Configuring an Object Storage repository

1. Once the Veeam Application is installed on your intermediate backup machine, start the Veeam Console by double-clicking on the corresponding icon:

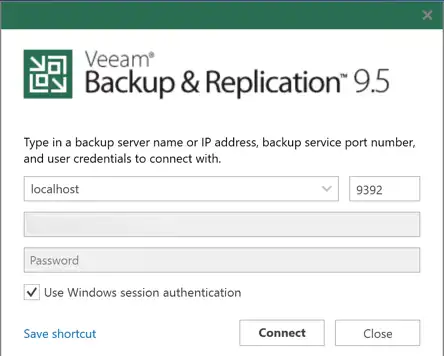

2. Enter the appropriate credits (normally these values are pre-filled) and click Connect:



3. Once logged into the Veeam console, click Backup Infrastructure:



4. Click Backup Repositories to enter the backup repository settings:



5. Click Add Repository to add the Object Storage bucket as a repository:

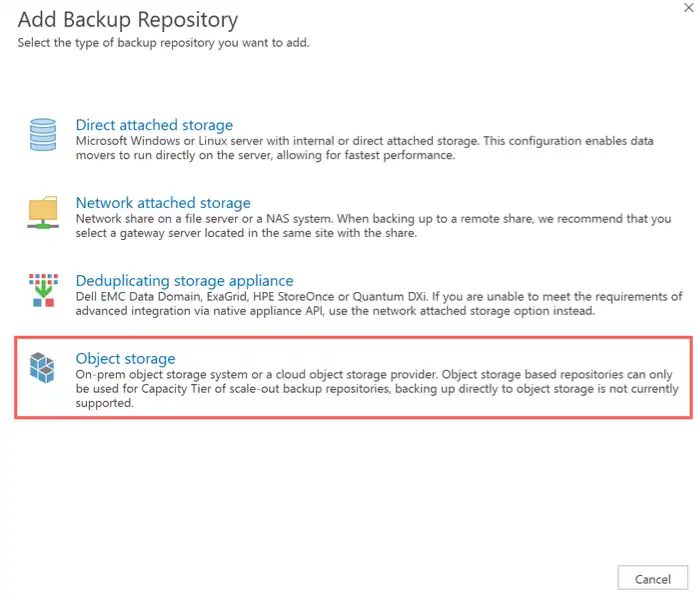

6. Choose Object Storage:

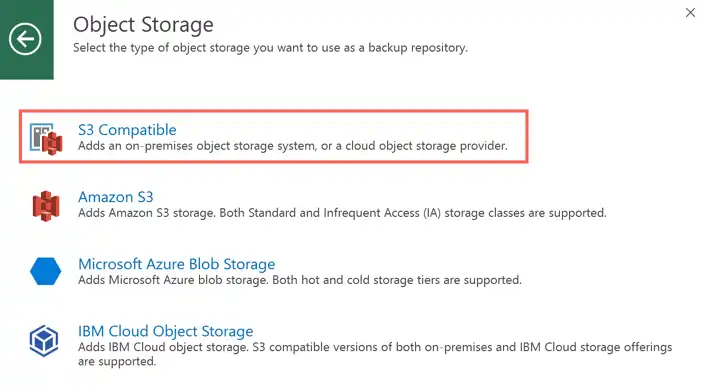

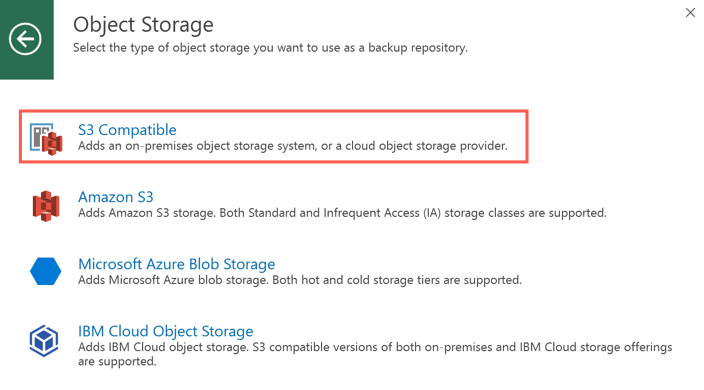

7. Click S3 Compatible:

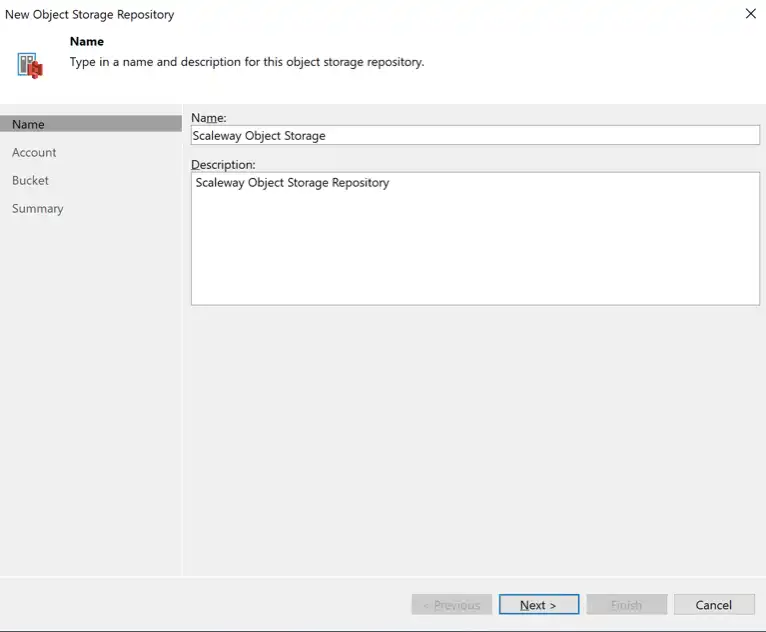

8. The setup wizard for the repository appears, provide a name and additional information for it, then click Next:

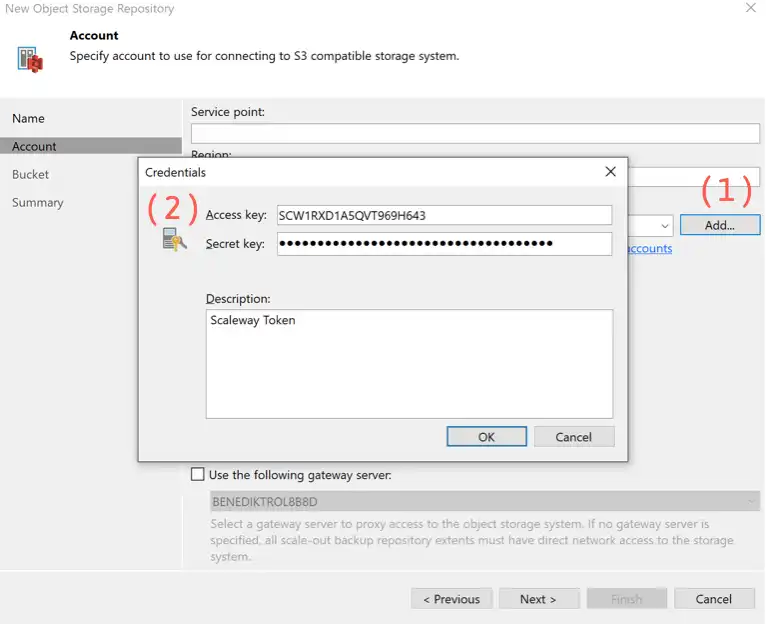

9. Click Add (1) to enter the API key (2) related to the bucket. Optionally a description can be provided:

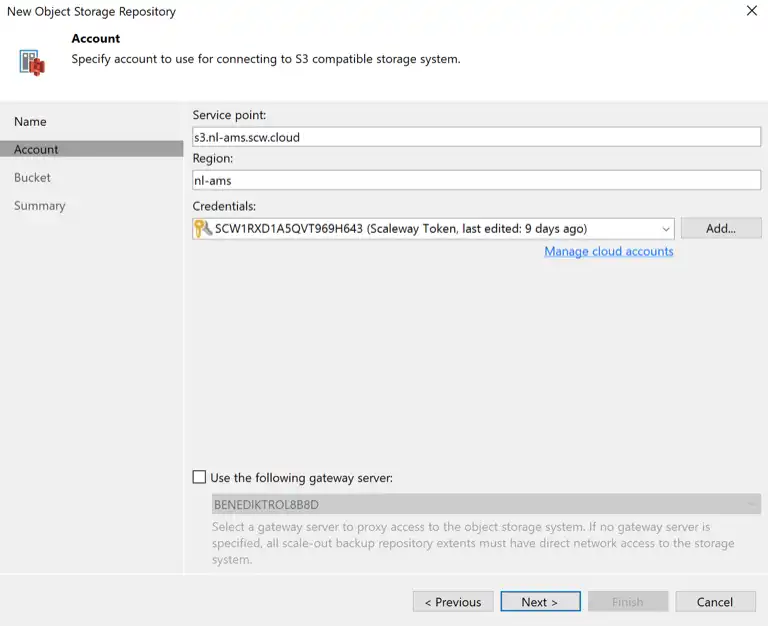

10. Provide the Service Point and the Region of your bucket, before clicking on Next:


    Note

    For a bucket located in the Amsterdam region, the service point is s3.nl-ams.scw.cloud and the region is nl-ams.

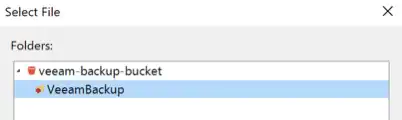

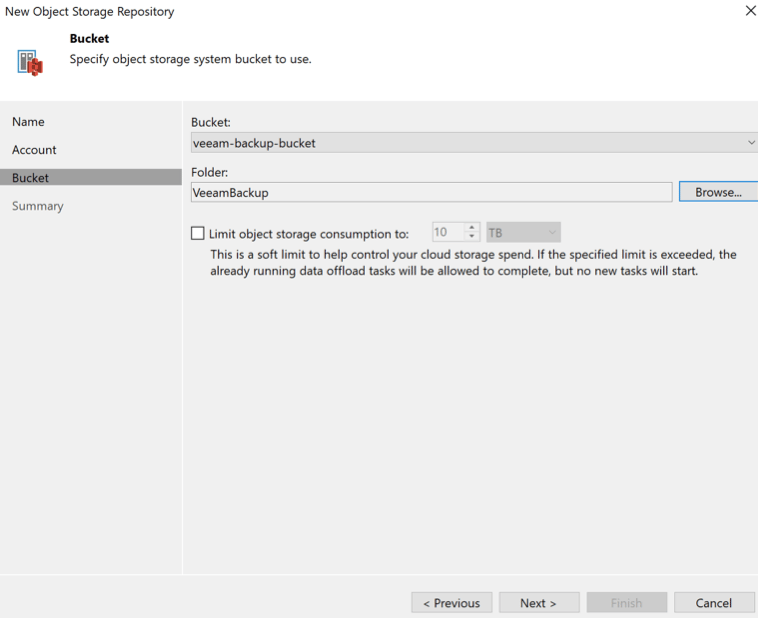

11. Veeam will connect to the Object Storage infrastructure and download the list of buckets. Choose the bucket to be used with Veeam from the drop-down list, click Browse, and create and select the folder for storing backups. Then click Next:

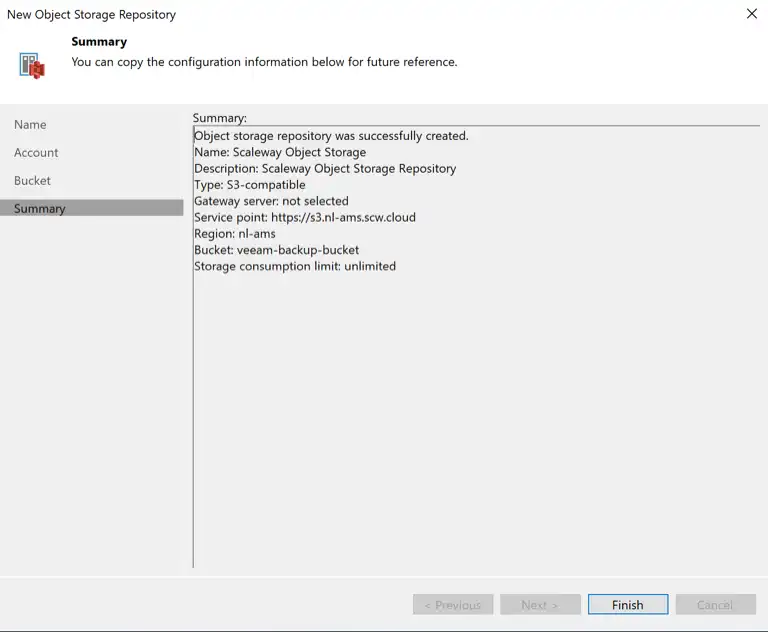

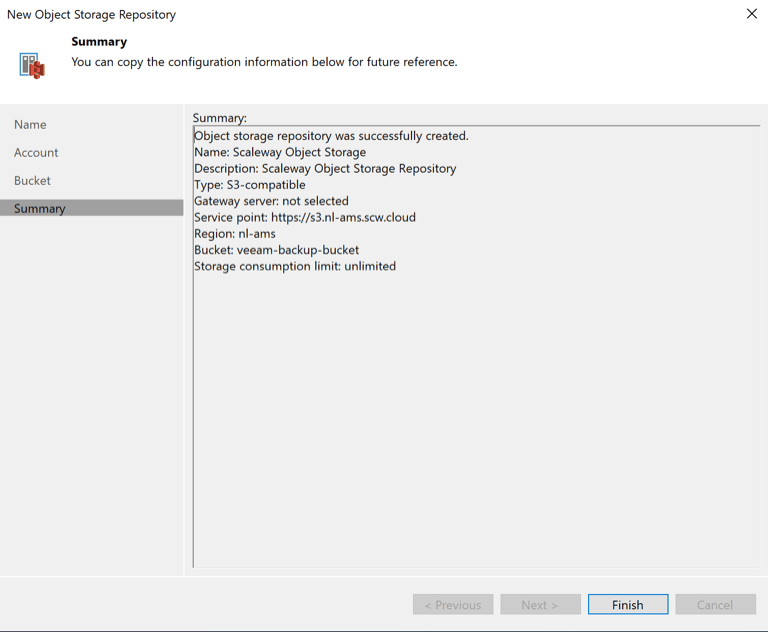

12. Verify all settings in the summary before clicking on Finish:



Configuring a local backup repository

1. As Veeam cannot currently push backups directly to an Amazon S3-compatible system, a local backup repository is required which will be configured as Storage Tier with Object Storage in a later step. Click Add Repository:

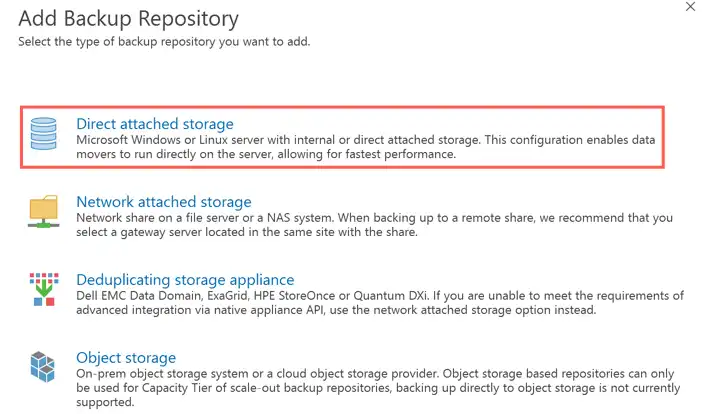

2. Choose Direct Attached Storage from the provided options:

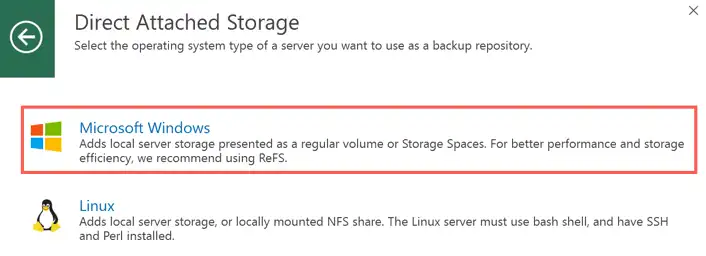

3. Click Microsoft Windows:

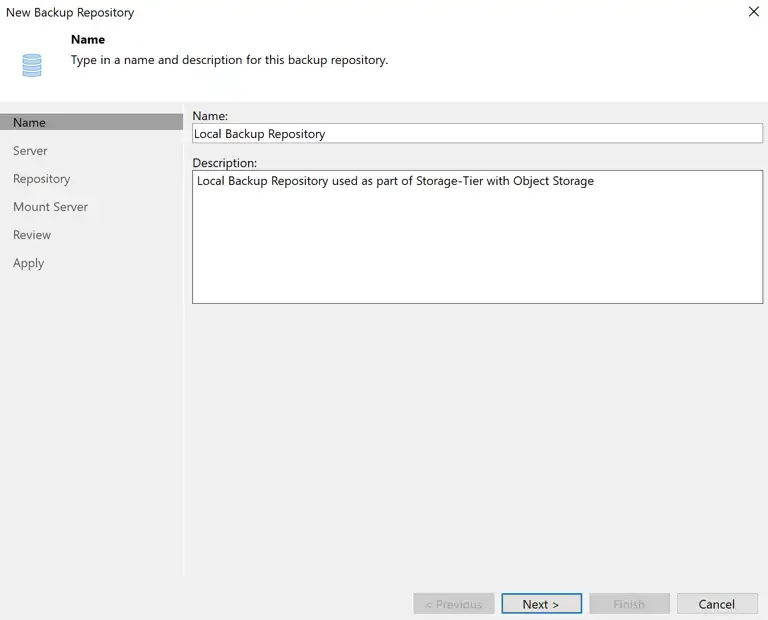

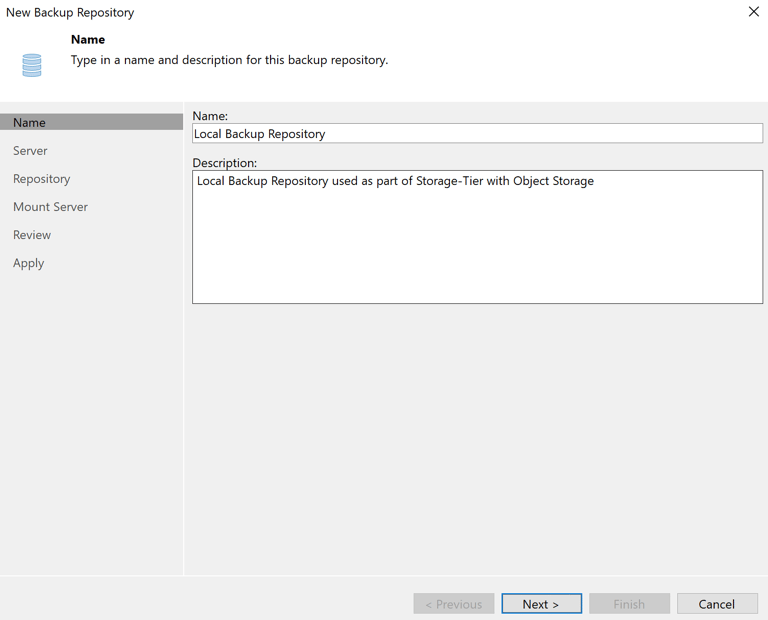

4. Enter a Name and an optional Description for the repository before clicking on Next:

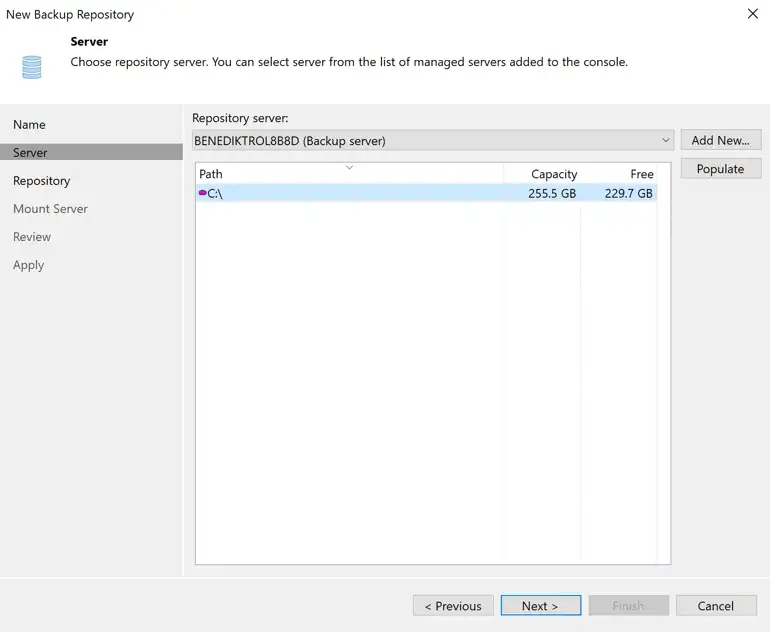

5. The local machine is pre-configured in this step. Click Next:

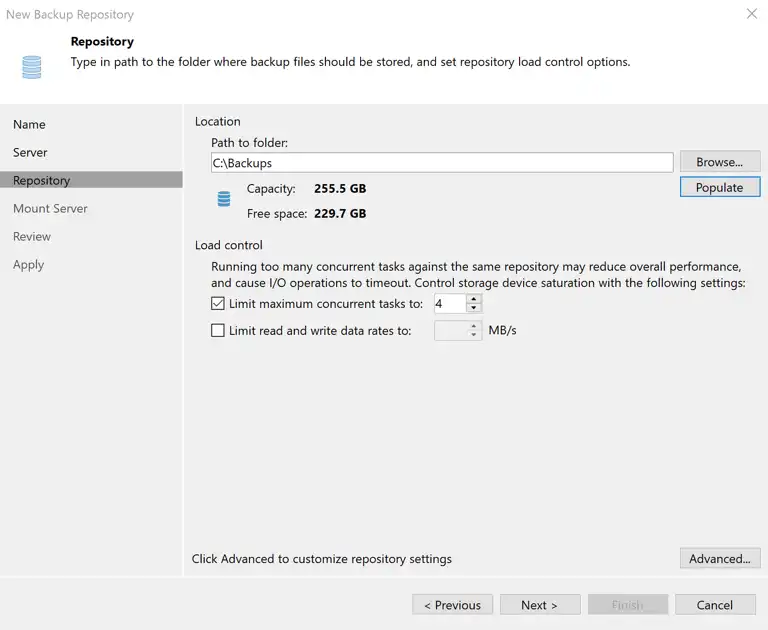

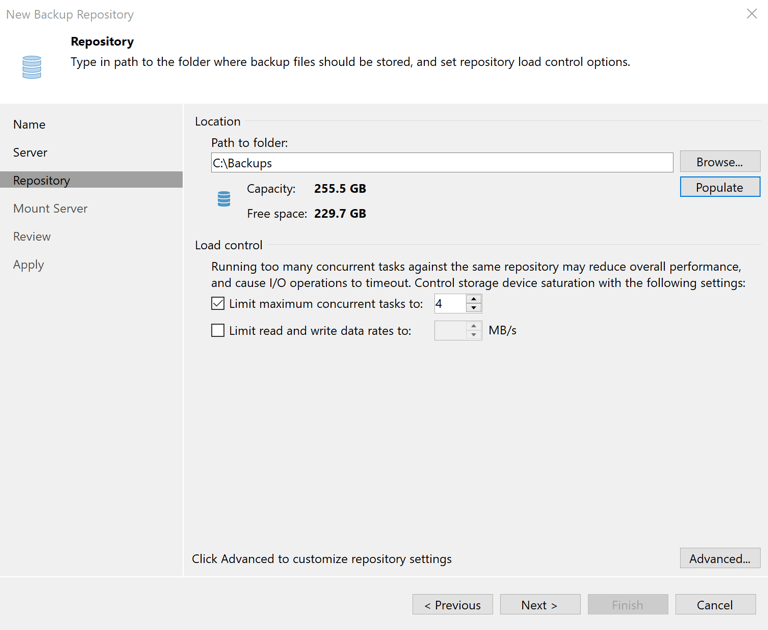

6. Click Browse to select a folder for local backups, then click Next:

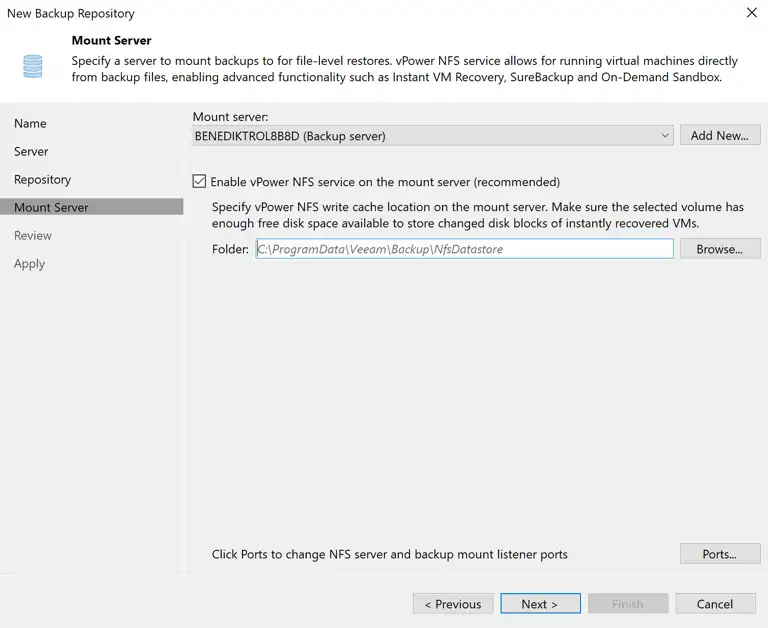

7. Keep these settings with the default values and click Next:

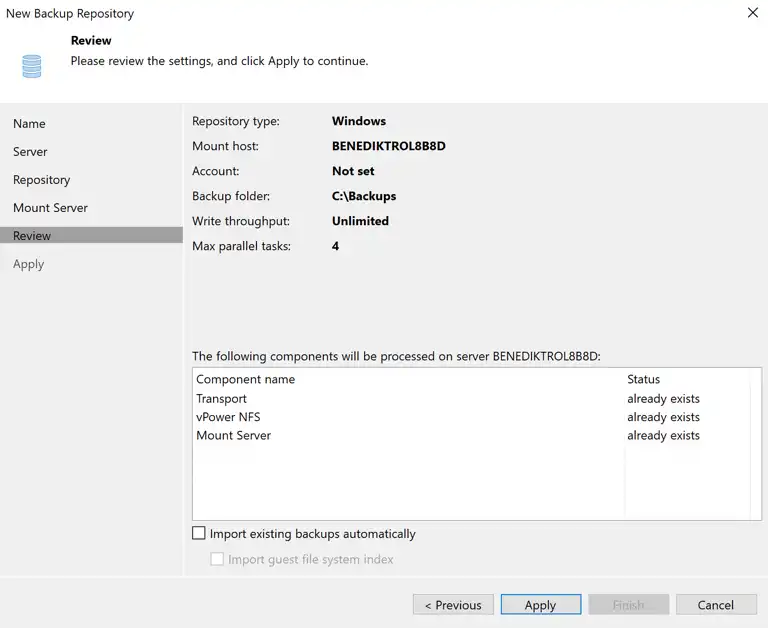

8. A summary of the configuration is shown, click Apply to apply the configuration to the repository:

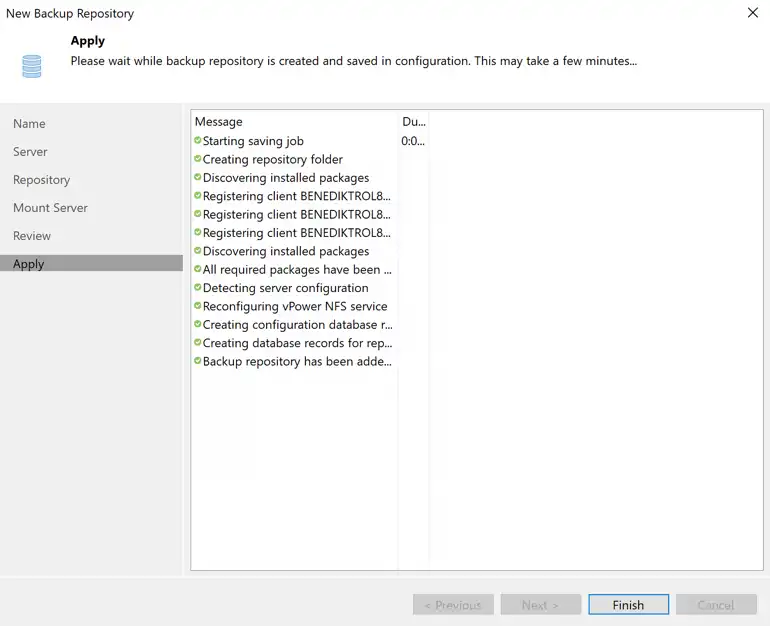

9. Veeam applies the configuration and runs some checks. Once they have completed, exit the wizard by clicking on Finish:


Configuring a scale-out repository

1. Enter the Scale-out Repositories section:

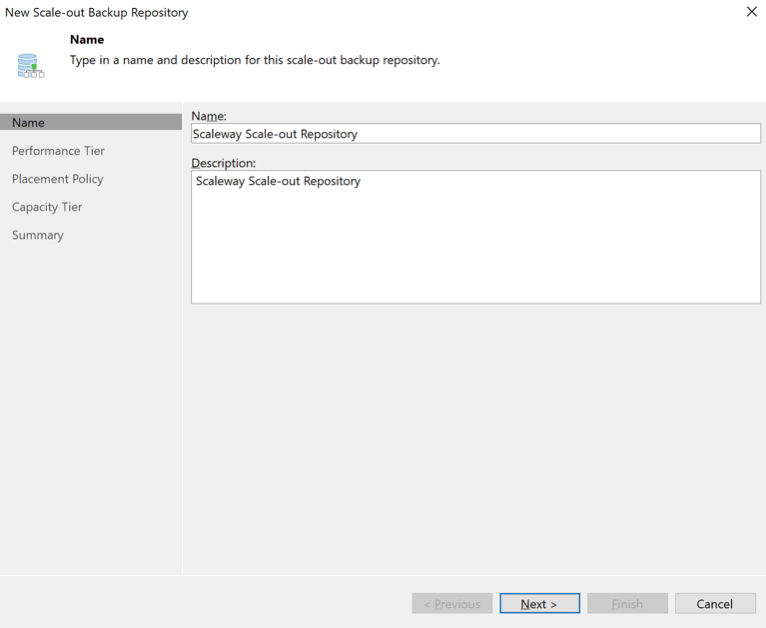

2. Enter a Name and an optional Description for the Scale-out repository, then click Next:

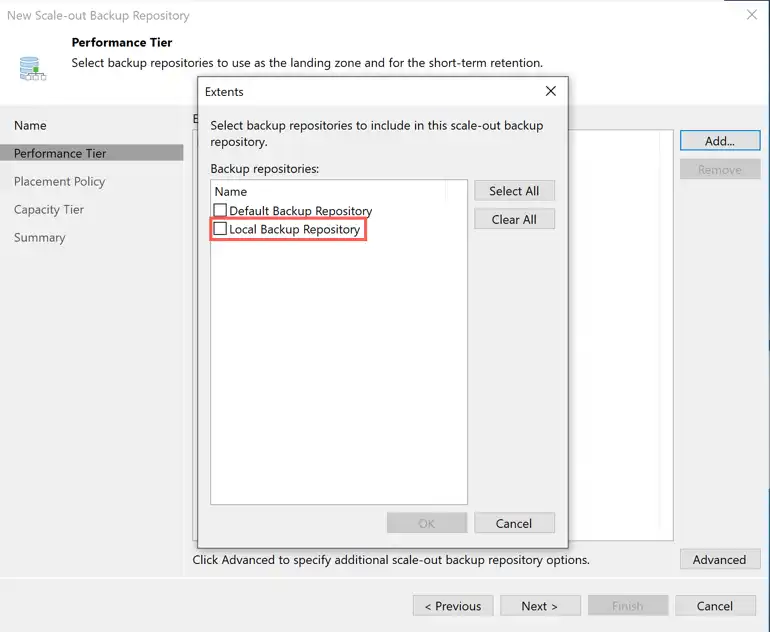

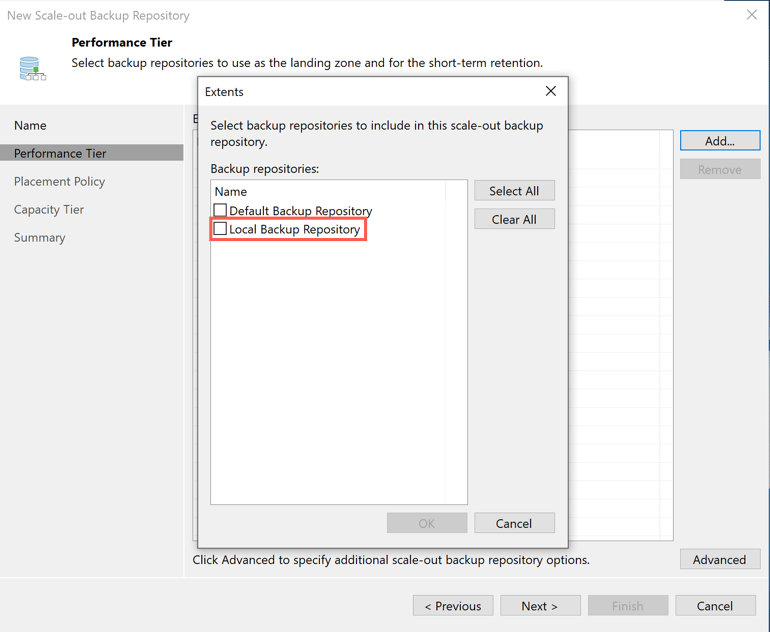

3. Click Add and choose the local Backup repository from the list. Confirm and click Next:

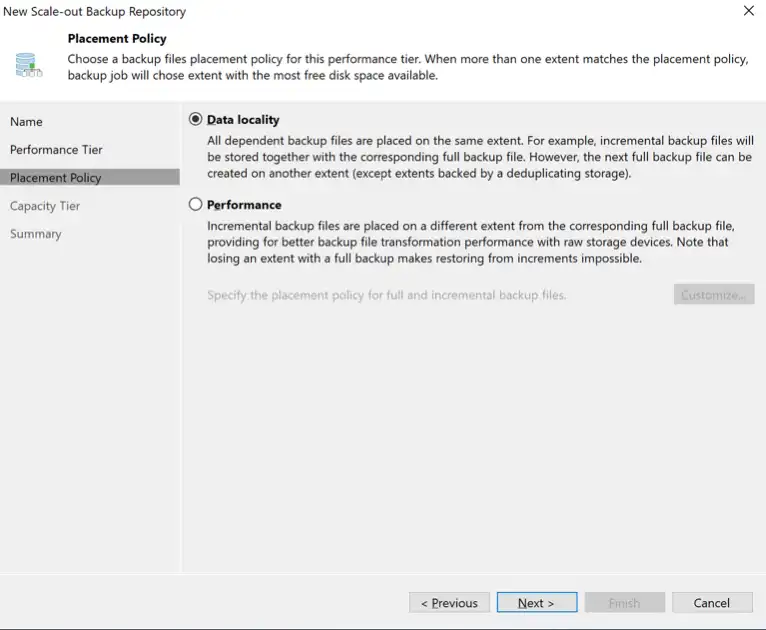

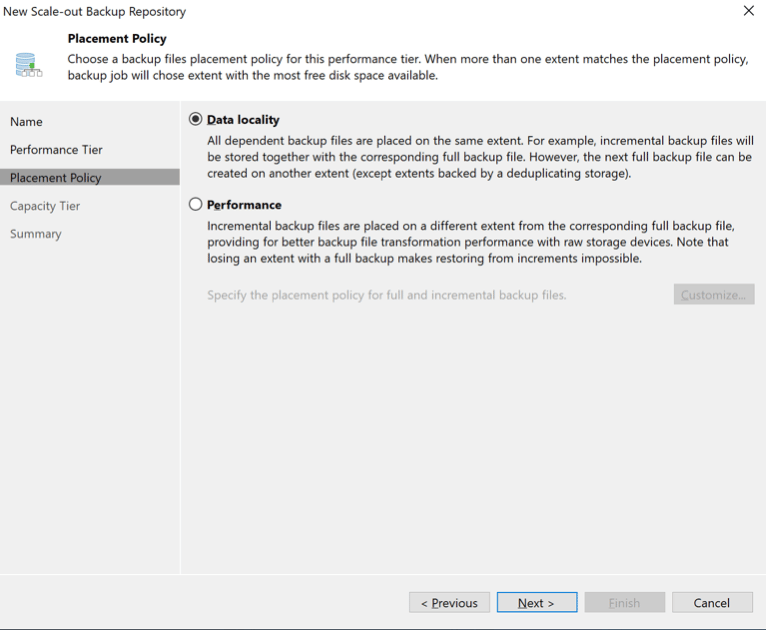

4. Choose the Placement Policy for the repository. The default settings can be used, click Next:

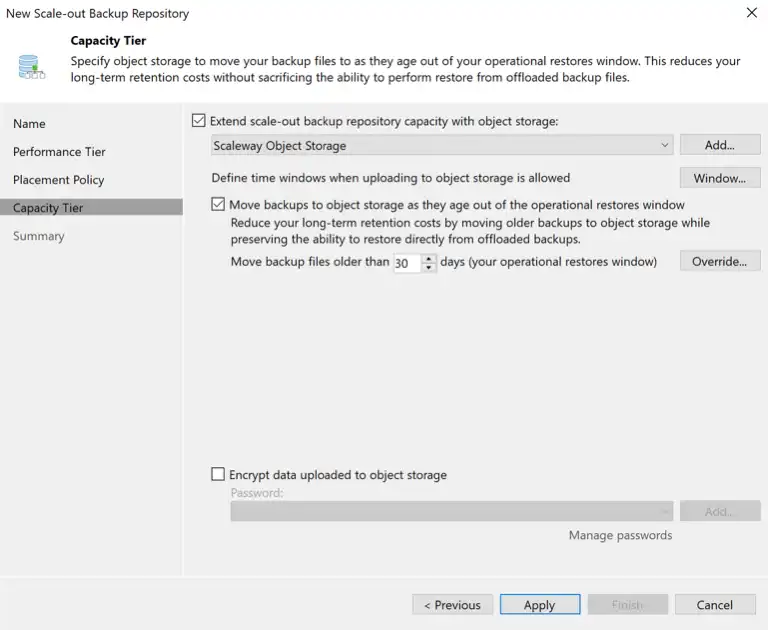

5. Click Extend Scale-out capacity with Object Storage and choose your Object Storage repository from the drop-down list. It is also possible to define a time frame in which backups are uploaded to Object Storage and after how many days backups are transferred automatically. If required data can also be encrypted by activating the option. Once the Object Storage settings are configured, click Apply:

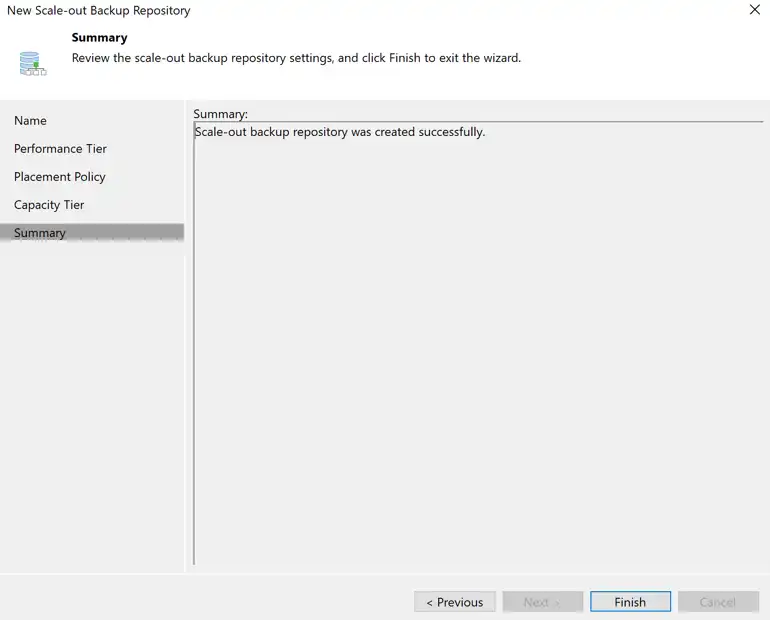

6. Once the scale-out bucket is configured, exit the wizard by clicking on Finish.


Adding a vSphere hypervisor in Veeam

1. Click Managed Servers in the Backup Infrastructure tab of the Veeam console:

2. Click Add Server in the menu bar:

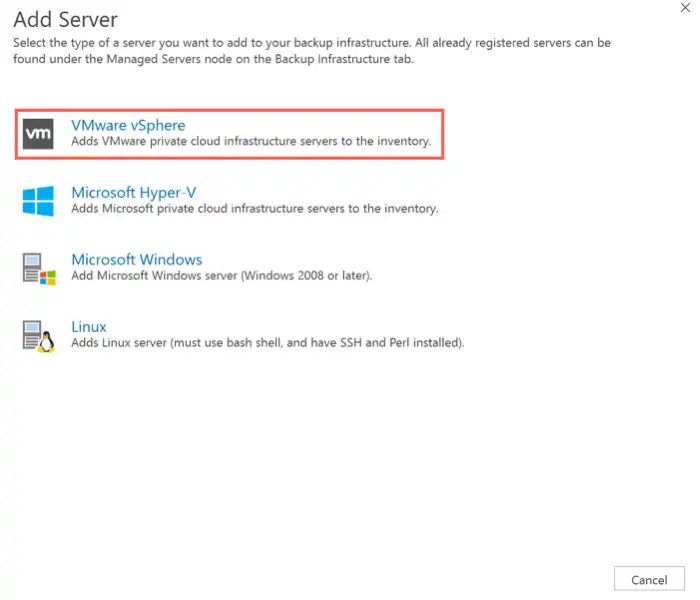

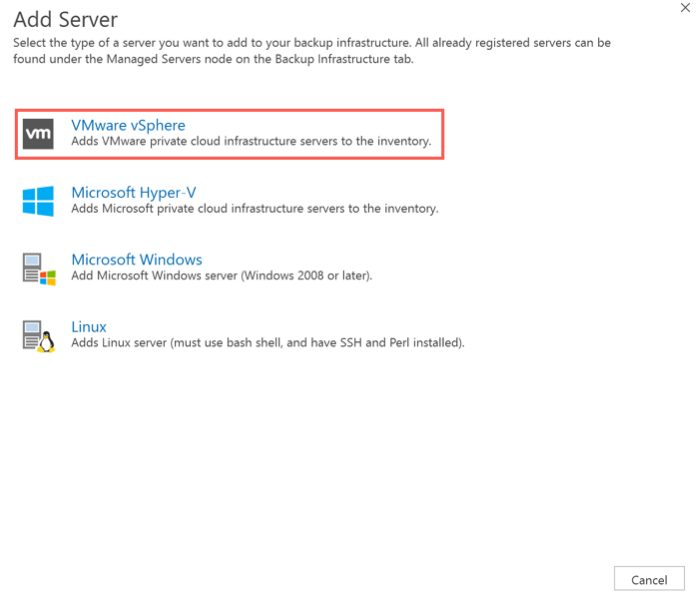

3. Choose VMware vSphere from the list of virtualization technologies:

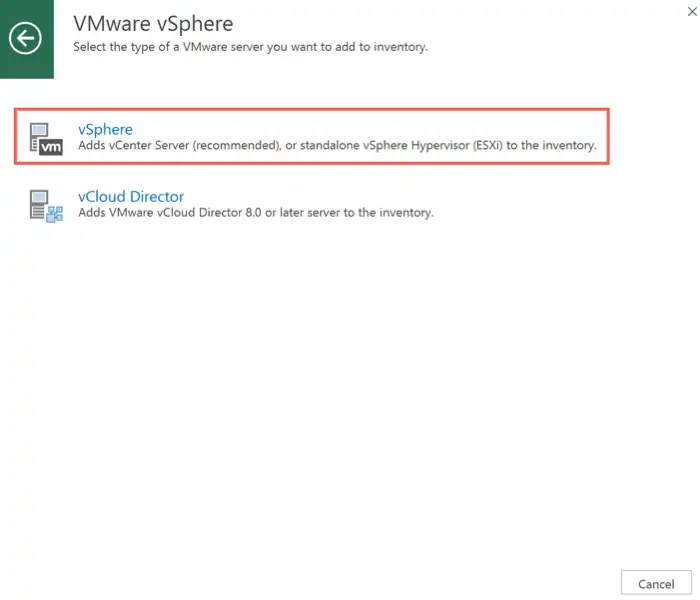

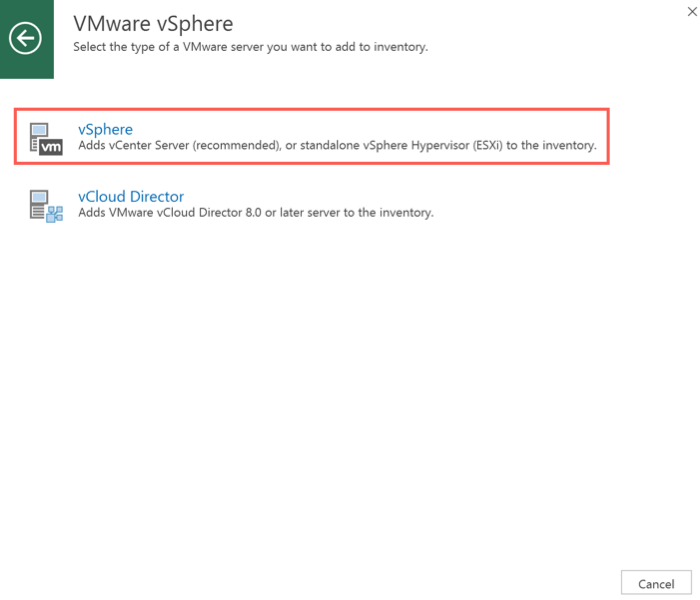

4. Click vSphere to launch the configuration wizard:

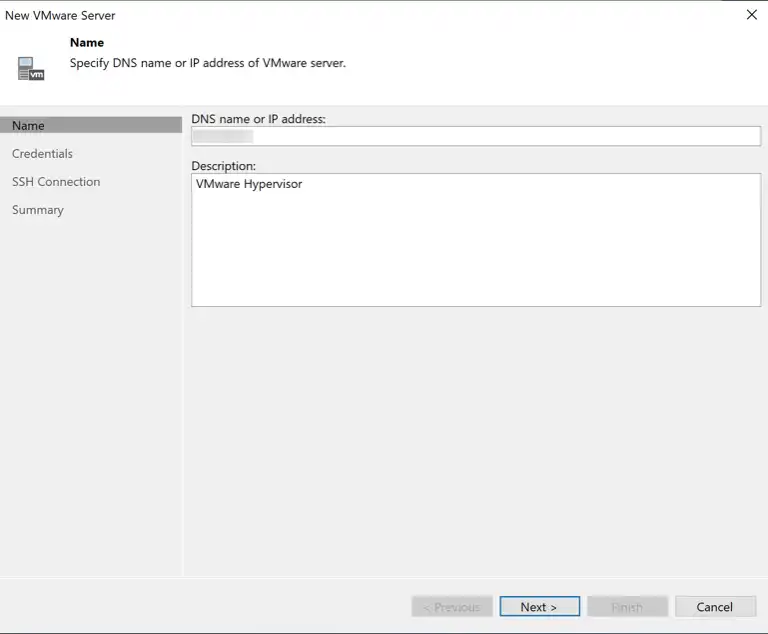

5. Enter the DNS Name or IP of the Hypervisor and an optional description of the server, then click Next:

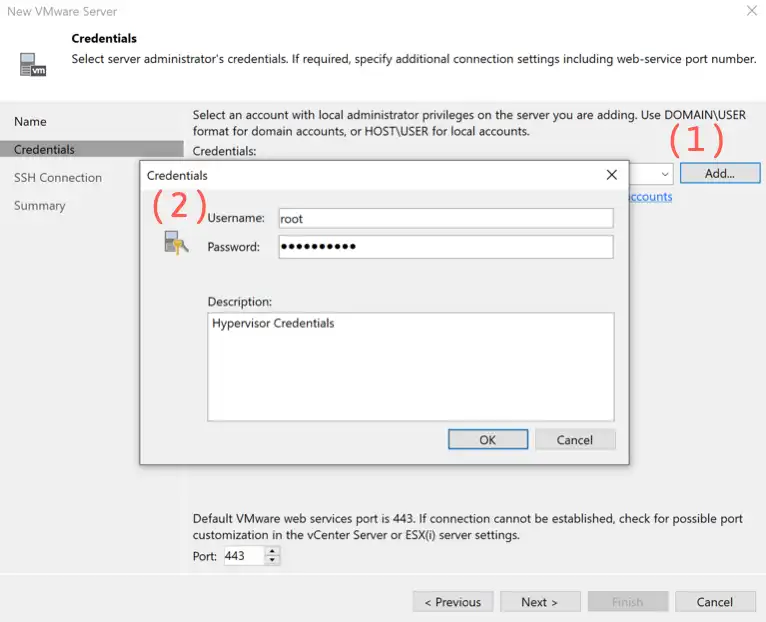

6. Click Add (1) and enter the connection credentials for the hypervisor (2). Validate by clicking on OK. If the Hypervisor listens on a non-standard port, edit it. Click Next to go to the next step:

7. A summary of the connection is shown. Click Finish to exit the wizard.

Configuring a backup job

1. On the Homepage of the Veeam console, click New Backup, then on Virtual Machine in the drop-down menu:

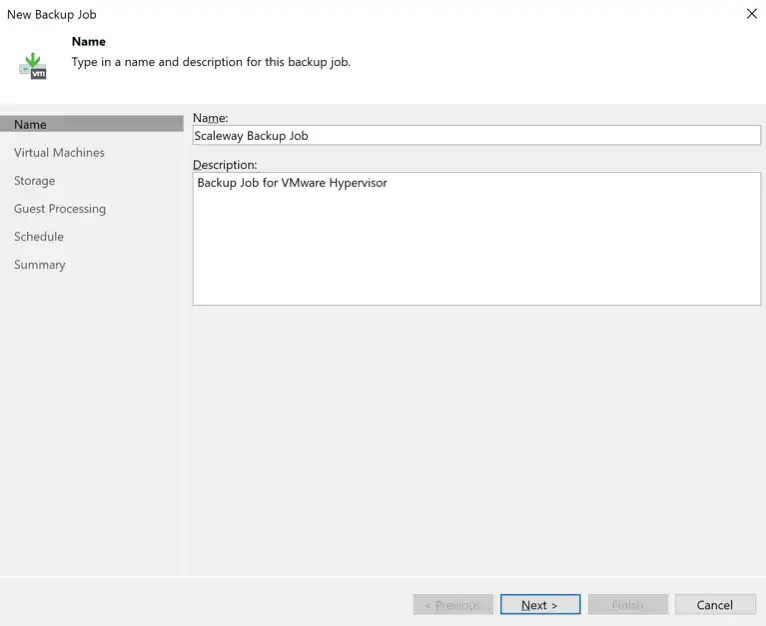

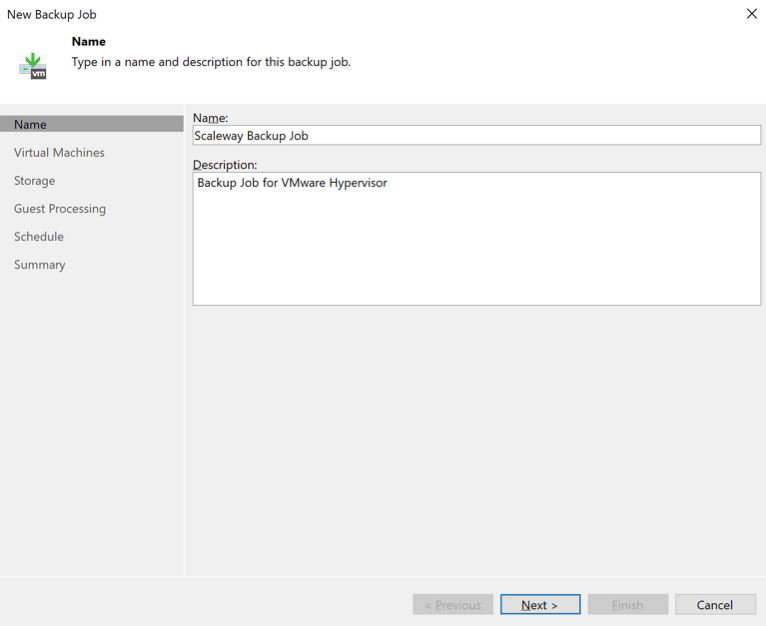

2. Enter a Name and an optional Description for the backup job. Then click Next:



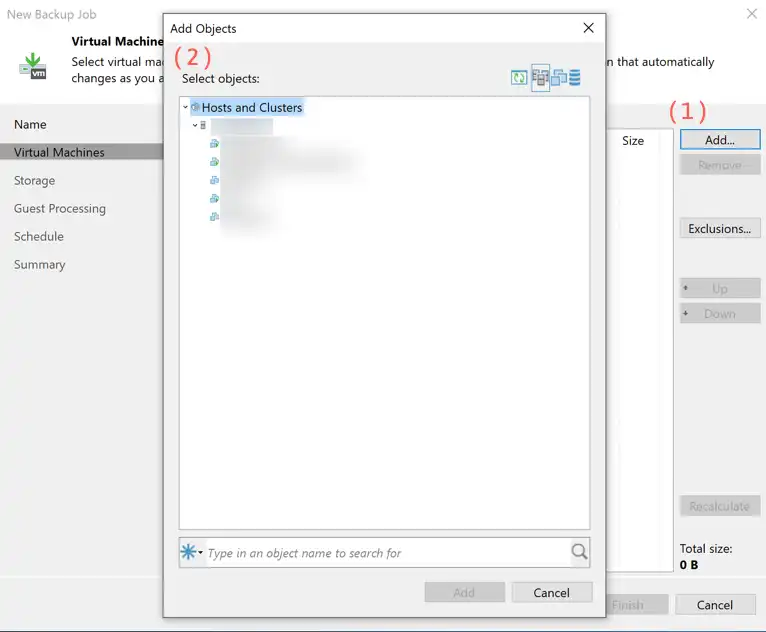

3. Click Add (1) and choose the virtual machines or hypervisors (2) to be backed up. Once finished, click Next:

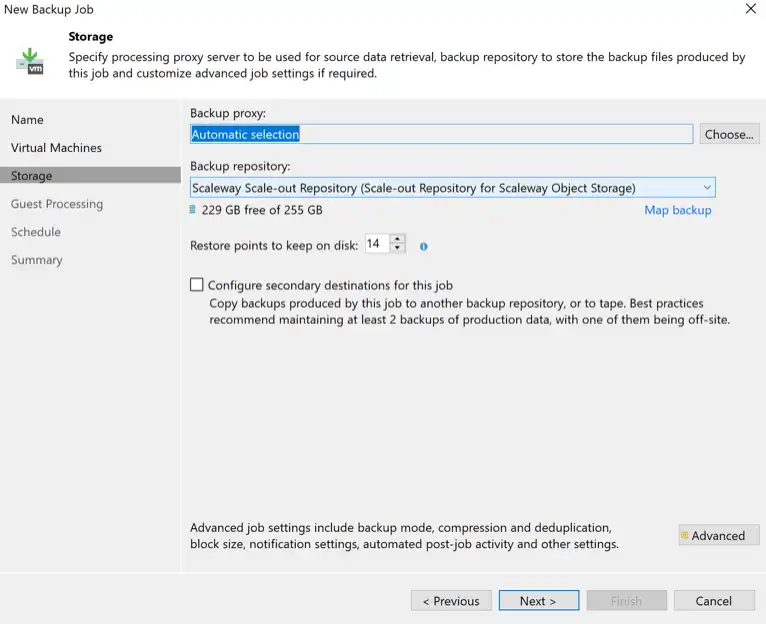

4. Choose the previously configured Scale-out repository from the drop-down menu and choose the restore points to keep on disk for the backup. Click Next once this is done:

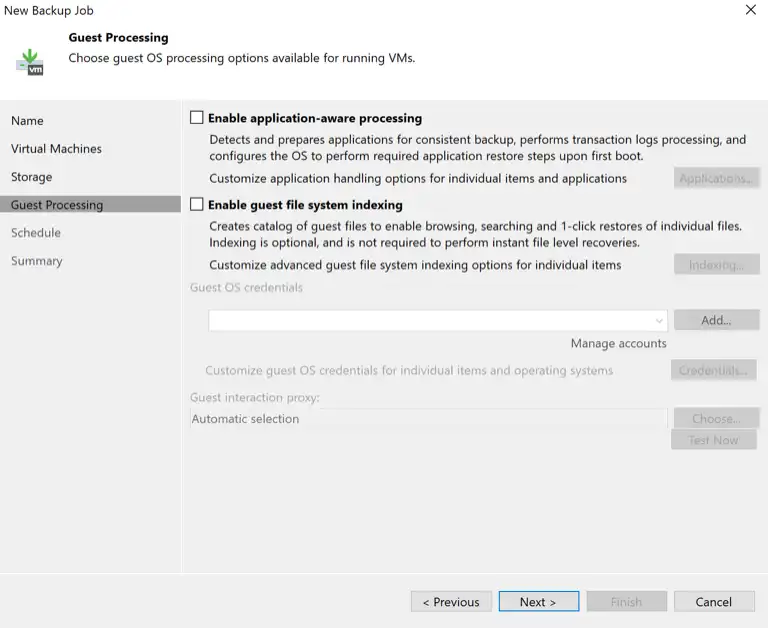

5. Configure guest OS processing options for virtual machines. The default settings should be fine. Validate it by clicking on Next:

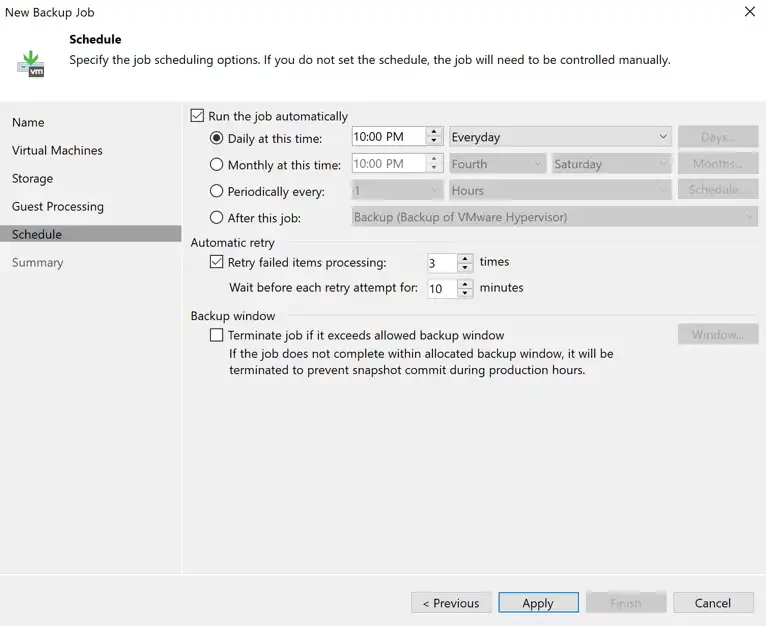

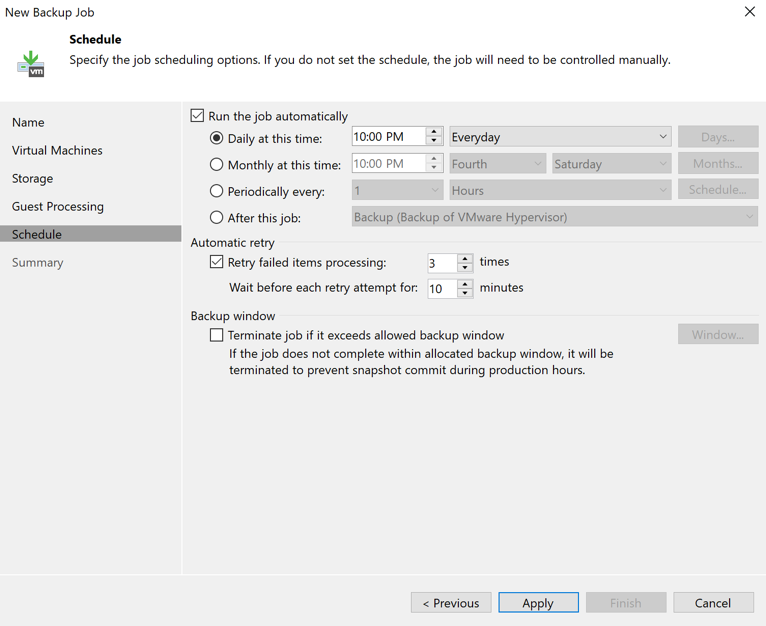

6. Configure a schedule to execute the backup job automatically. If no schedule is configured, the job must be started manually for each backup. Once the schedule is set, click Next:

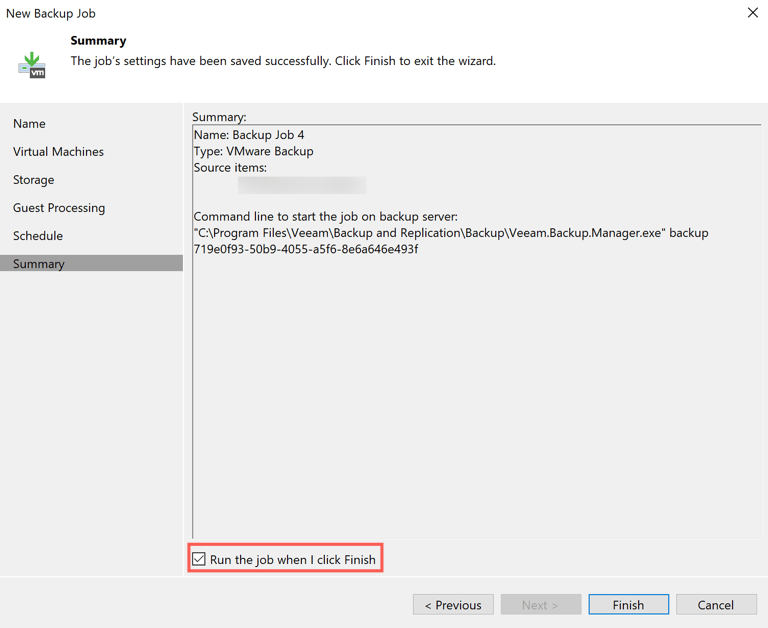

7. A summary of the configured job is shown. Tick the box Run the job when I click Finish to execute the job immediately. If the box is not ticked, the first backup will be created according to the schedule. Click Finish to exit the wizard:

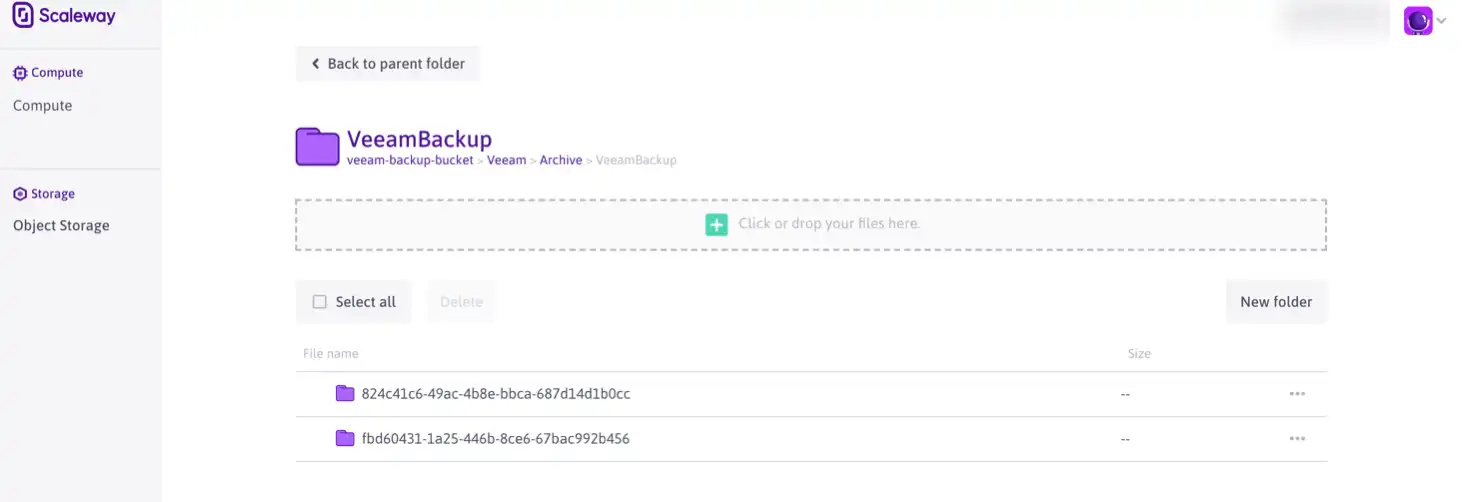

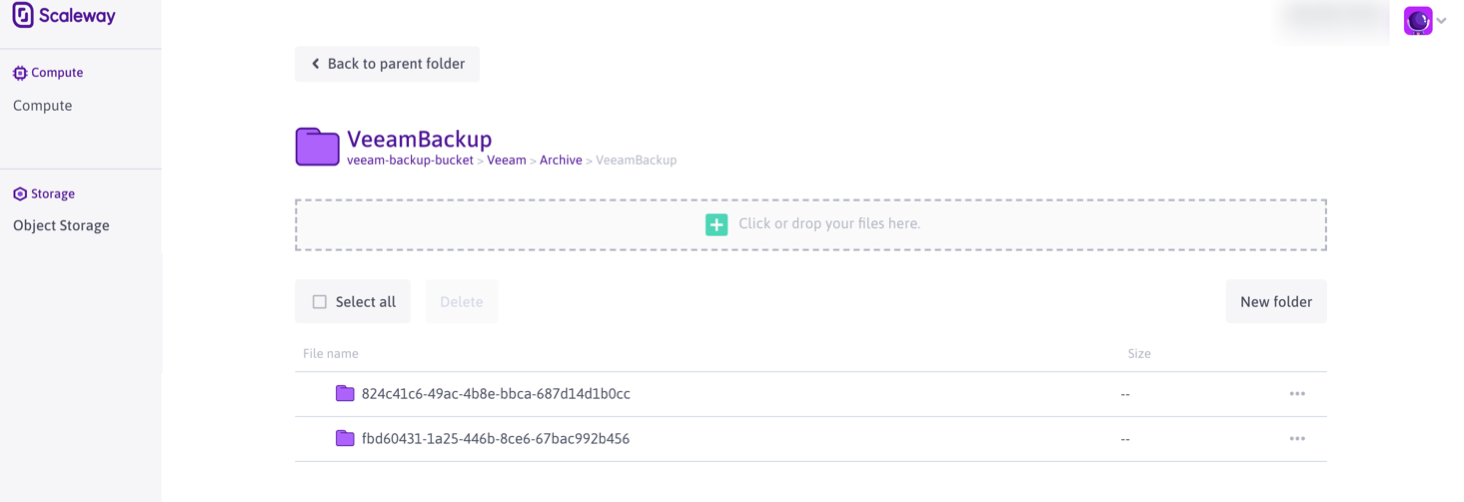

Veeam proceeds with the backup and stores data on Object Storage. To verify it, log yourself into the Scaleway console, enter the Object Storage section, and choose the Bucket used for Veeam. Several files and folders created by the application are visible:

Troubleshooting

This section is designed to help you solve common issues encountered while performing the actions described in the procedure.

Bucket access errors

Error messages

• Failed to preprocess target Error: S3 error: Access Denied
• Error: Shared memory connection was closed.
• Failed to upload disk 'shadowSpec>'
• Agent failed to process method {DataTransfer.SyncDisk}.

Cause

The application cannot access the Object Storage resource.

Solution

If you encounter one or several of the error messages above:

• make sure that you have the ObjectStorageFullAccess IAM permission.

• make sure that there is no bucket policy preventing the application to access your bucket.

Too many requests error

Error messages

• Error: S3 error: Too Many Requests
• Code: Too Many Requests
• Shared memory connection was closed.
• Agent failed to process method {DataTransfer.SyncDisk}.

Cause

Scaleway Object Storage applies a rate limit on PUT operations for safety reasons.

Solution

You can limit the number of concurrent tasks and update the timeout duration of Object Storage requests on the Veeam Backup & Replication server managing the backup copy operation by adding the elements below:

HKEY_LOCAL_MACHINE\SOFTWARE\Veeam\Veeam Backup and Replication
S3ConcurrentTaskLimit
Type: REG_DWORD
Value: 8
Type: DWORD
Name: S3RequestTimeoutSec
Value: 900
Type: DWORD
Name: S3RequestRetryTotalTimeoutSec
Value: 9000

Then, restart every Veeam service, or restart the Veeam server.

Going further

If you did not manage to identify the error and solve it by yourself, open a support ticket, and provide as many details as possible, along with the necessary information below:

• Object Storage Endpoint (e.g. s3.fr-par.scw.cloud)
• Bucket name
• Object name (if the request concerns an object)
• Request type (PUT, GET, etc.)
• HTTP status code
• Date and time (timestamp)
• User-agent (SDK, client, console, etc.)
• Transaction ID (if possible)
• Log / trace of the error (if possible)
